Introduction
In today's society, motors, as an indispensable source of power in industrial production and daily life, directly affect the development of various fields. In order to continuously improve the performance of motors, motor manufacturers are constantly seeking innovation. Among them, motor glue bonding lamination stack technology, as an emerging manufacturing process, stands out with its unique advantages in the field of motor manufacturing. This article will delve into this advanced technology that leads the manufacturing revolution from aspects such as technical principles, advantages, application cases, and customized processing services.
1. Principle of Motor Glue Bonding Lamination Stack Technology

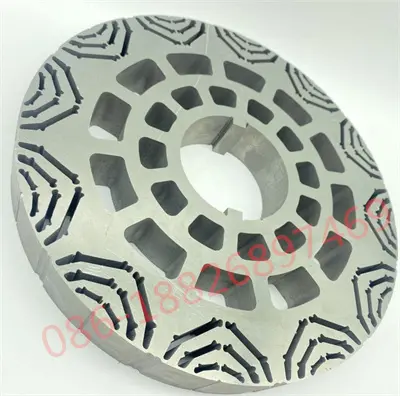

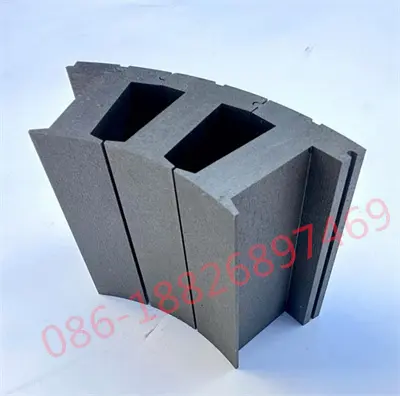

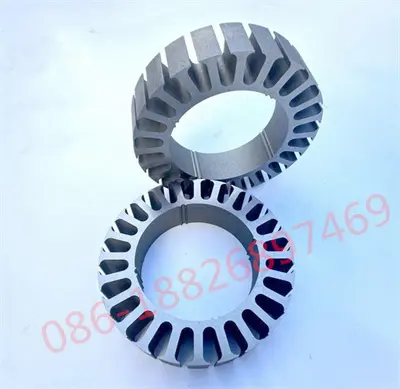

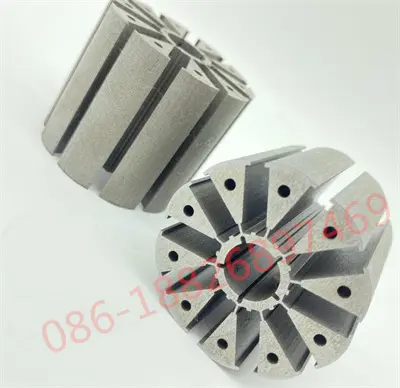

Motor glue bonding lamination stack technology is a manufacturing process that uses high-performance glue to bond and press silicon steel sheets layer by layer, ultimately forming a sturdy and flat lamination stack. This technology combines the advantages of traditional mechanical connections and chemical bonding, ensuring close contact between laminations while improving overall mechanical strength and durability.
2. Advantages of Motor Glue Bonding Lamination Stack Technology
2.1 Outstanding Performance Improvement
Through glue bonding, the magnetic flux conduction between silicon steel sheets becomes smoother, thereby significantly improving the energy efficiency and power density of the motor.
2.2 Excellent Durability
Glue bonding possesses good weather resistance and seismic performance, effectively resisting the impact of various harsh environmental factors and extending the service life of the motor.
2.3 Significant Noise Reduction
The flat lamination surface greatly reduces the frictional noise and aerodynamic noise during motor operation.
2.4 Wide Applicability
This technology is applicable to various types of motors, including DC motors, AC motors, stepper motors, etc., meeting the needs of different application scenarios.
2.5 Environmental Protection and Sustainability
Using environmentally friendly glue reduces environmental pollution during the production process and aligns with the global trend of sustainable development.
3. Application Cases of Motor Glue Bonding Lamination Stack Technology
3.1 New Energy Vehicle Field
In the drive motors of new energy vehicles, glue bonding technology effectively improves the power output and torque performance of the motor, helping new energy vehicles achieve longer range and faster acceleration performance.
3.2 Home Appliance Industry
In the manufacture of home appliance motors, glue bonding technology not only improves the energy efficiency level of the motor but also reduces operating noise, bringing a more comfortable user experience.
3.3 Industrial Automation Field
Servo motors in industrial automation equipment require extremely high precision and stability. Glue bonding technology ensures the stability and accuracy of the motor during high-speed operation.
4. Customized Processing Services for Motor Glue Bonding Lamination Stack Technology
To meet the individual needs of different customers, we provide comprehensive customized processing services for motor glue bonding lamination stack technology. From initial technical consultation to detailed product design, and then to professional manufacturing, we maintain close communication with customers throughout the process to ensure that the final product can meet their stringent requirements. In addition, we also provide comprehensive after-sales service and technical support to ensure the long-term stable development of customers.
5. Conclusion
The emergence of motor glue bonding lamination stack technology has brought revolutionary changes to the motor manufacturing industry. It not only improves the performance and efficiency of motors but also contributes to environmental protection and sustainability. Looking ahead, we have reason to believe that with the continuous advancement of science and technology and the continuous emergence of innovations, motor glue bonding lamination stack technology will be widely used in more fields, injecting new vitality into the development of human society.
FAQS
Q: What is the difference between adhesive bonding technology and traditional riveting or welding?
|
Connection mechanism |
Adhesive bonding forms chemical bonds through chemical reactions, while riveting and welding form connections through mechanical locking and melting of materials, respectively. |
|---|---|
|
Heat effect |
Adhesive bonding has no heat affected zone and does not affect material properties, while riveting and welding may cause material deformation or performance changes. |
|
Precision and uniformity |
Adhesive bonding provides higher precision and uniform stress distribution, while riveting and welding may cause stress concentration. |
|
Flexibility |
Adhesive bonding has a certain degree of flexibility, absorbing vibration and impact, while riveting and welding connections are usually more rigid. |
Q: What is the manufacturing process for adhesive bonded laminated stack?
|
Prepare silicon steel sheet |
Cut the silicon steel sheet to the appropriate size and shape according to the design requirements. |
|---|---|
|
Surface treatment |
Clean the surface of the silicon steel sheet, remove oil and impurities, and ensure good bonding effect. |
|
Gluing |
Apply specialized adhesive evenly on the surface of the silicon steel sheet. |
|
Stacking |
Stack the coated silicon steel sheets in order to ensure alignment and tight contact. |
|
Pressure curing |
Apply pressure to tightly bond the laminations and cure the adhesive under certain temperature and time conditions. |
|
Post processing |
Trim, inspect, and package the cured stack as needed. |
Q: What are the special applications of adhesive bonding technology in new energy vehicle motors?
|
Increase power density |
Through adhesive bonding, close contact between silicon steel sheets is achieved, increasing magnetic flux density and thus increasing the power output of the motor. |
|---|---|
|
Enhanced heat dissipation performance |
Adhesive bonding helps to form a continuous heat conduction path, improving the heat dissipation efficiency of the motor. |
|
Weight reduction and compact design |
Adhesive bonding allows for the use of thinner silicon steel sheets and more compact structural designs, helping to reduce motor weight and improve energy efficiency. |
|
Improve NVH performance |
(noise, vibration, and roughness): The smooth surface bonded with glue reduces friction and vibration during rotation, reducing noise. |
|
Adapt to modular production |
Adhesive bonding technology facilitates modular production, improves production efficiency and assembly accuracy. |
Q: Can the adhesive of the iron core withstand high temperatures?
The adhesive of the iron core can indeed withstand high temperatures. The type of adhesive selected is crucial in the design and manufacturing process. Usually, the adhesive used for bonding iron cores is high-temperature resistant adhesive, which can maintain stability in high-temperature environments without losing adhesion. These adhesives are specially formulated to ensure that the adhesive strength and structural integrity can still be maintained under normal operation of the motor and extreme conditions, such as high temperature operation.
Therefore, the use of high-temperature resistant adhesive for iron core bonding is reliable and can adapt to the working requirements of motors in high-temperature environments.
